Build a custom question interface

A custom code renderer changes how one question is presented and answered. The question keeps its built-in type, so its stored value, server validation, charts, and typed exports continue to follow that type. Use custom code when the participant needs an interaction that cannot be represented by the built-in settings, such as a constrained price ladder, a content-dependent allocation, a click-to-reveal task, or a custom arrangement of values from earlier answers. Keep routing, conditions, section assignment, screening, and quotas in their native controls. A renderer governs one question screen; it does not control the rest of the participant journey. Custom-code questions cannot be used as quota variables.

Ask the assistant to build the renderer

You do not need to write the component yourself. In the Assistant panel, name the question and describe:

What the participant sees and does.
Which earlier answers the interaction needs.
What value the question must store.
The condition that makes the answer complete.
Any mobile, translation, or accessibility requirement.

For example:

On “Choose your cold-coffee budget for next month,” create a custom interface that starts from the earlier monthly-spend answer. Increase or decrease it in €5 steps, show the current amount at all times, and store one numeric answer. The participant can continue after selecting an amount between €0 and €150. Keep it usable on mobile.

After the assistant updates the form, open the renderer and complete the preview checks below before saving the questionnaire.

Open the renderer editor

Open the question’s ⋯ menu and select Custom-built question. If the question already uses one, select Edit in its custom-question strip. Test in that strip opens a participant test of the question; it does not open the editor preview.

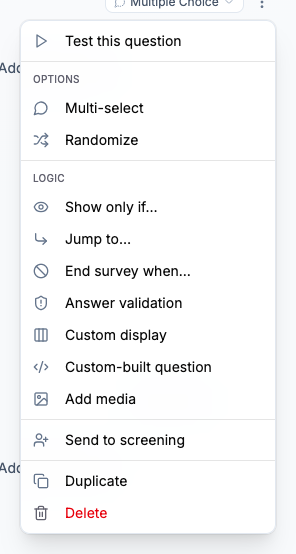

Question menu with Custom-built question selected and the question type still visible — Open Custom-built question from the question menu; the underlying question type remains unchanged.

The dialog opens on Preview. Interact with the component until it produces an answer. The status beneath the preview reports whether that answer matches the question type.

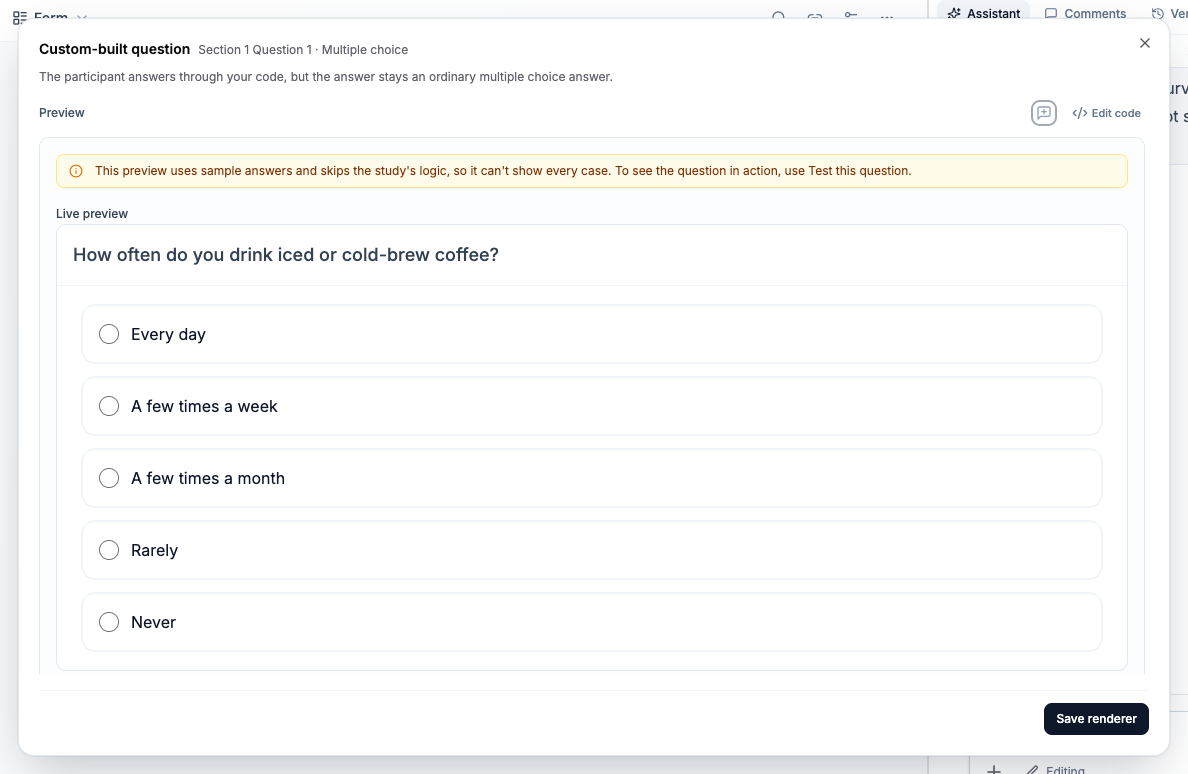

Custom-built question preview with the participant interaction and Edit code control — Preview runs the same sandboxed component used in the participant survey and shows whether its answer has the expected shape.

Preview uses sample inputs and does not run the study’s routing. Use Test this question to check the saved renderer in the participant journey. Save renderer changes first if that action is disabled. After changing an earlier answer, test that a dependent custom question receives the new inputs and asks for a fresh answer.

Edit the component

Select Edit code to open the TSX editor. Select Back to preview to return to the interaction. It must export one React component. Imports are limited to react and @deepfield/question-kit. The question kit provides the question definition, declared earlier answers, translatable parameters, locale, current answer, and answer controls:

import { OptionRow, useQuestion } from "@deepfield/question-kit";

export default function Question() {
  const { question, answer, setAnswer, setValid } = useQuestion();
  const selected = Array.isArray(answer) ? answer : [];

  return question.options.filter((option) => !option.is_group).map((option) => (
    <OptionRow
      key={option.id}
      selected={selected.includes(option.id)}
      input="radio"
      name={question.question_id}
      onClick={() => {
        setAnswer([option.id]);
        setValid(true);
      }}
    >
      {option.text}
    </OptionRow>
  ));
}

Use the Coding guide in the dialog for the components and answer contract available to the selected question. The component runs without access to the network, the DeepField page, browser cookies, or browser storage. It can use React, HTML, SVG, canvas, Tailwind utilities, theme colors, and components exported by the question kit.

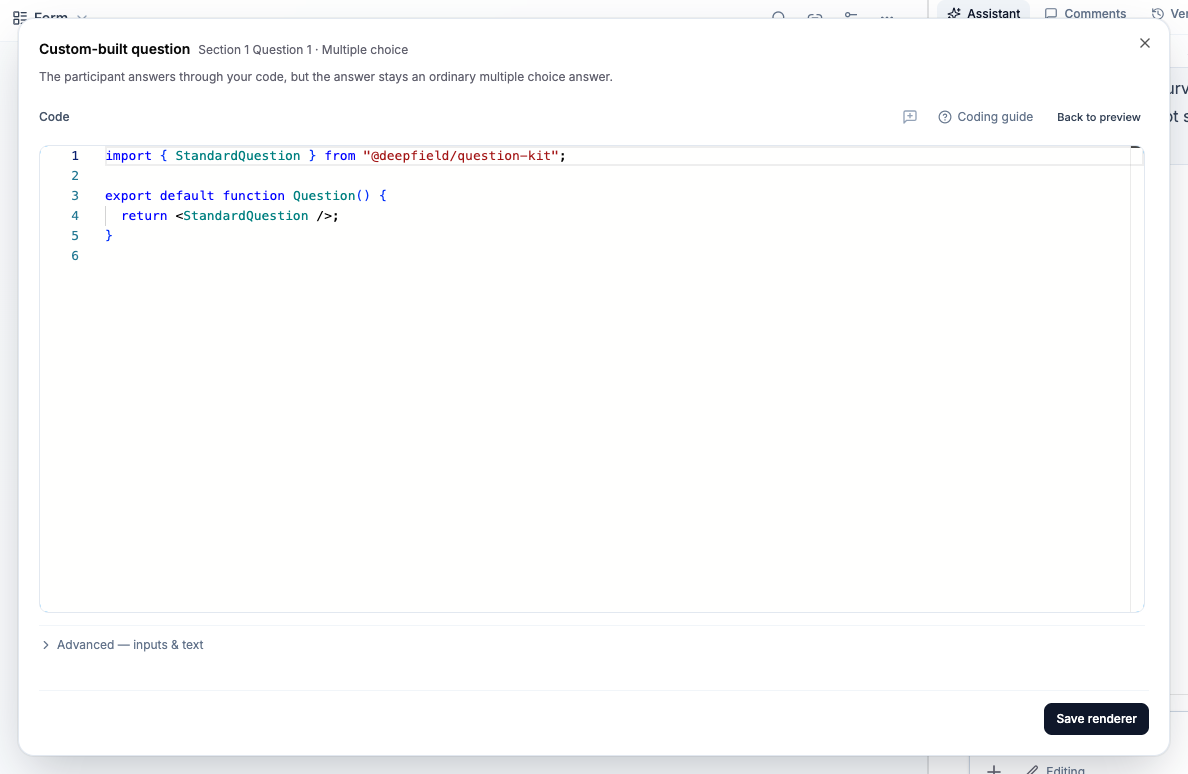

Custom question Code view with source editor, compile status, and Coding guide control — The Code view includes the source editor, compile feedback, and a coding guide for the current question contract.

Match the answer contract

setAnswer must use the value shape of the underlying type:

Question type	Stored value
Numeric	A number
Open-ended	A string
Multiple Choice or Ranking	An array of option IDs
Allocation or Multi-Numeric	An object mapping option IDs to numbers
Categorical Matrix	An object mapping row IDs to one column ID, or arrays when multi-select is enabled
Numeric Matrix	An object mapping row IDs and column IDs to numbers
MaxDiff	An object with `best` and `worst` option IDs

Use IDs from question.options and question.matrix_rows. setValid(false, message) keeps Next unavailable and can show the participant what remains to be completed. The server validates the submitted value and the question’s configured validation rules. The current answer already contains restored progress. Use it as the submitted state so a participant who reloads can see and change the saved answer. For a currency question, call setCurrency("EUR") (or the selected currency code) as well as setAnswer(...). A numeric value alone does not pass the preview’s currency check.

Add earlier answers and translatable text

Open Advanced — inputs & text.

Inputs declares earlier questions. The renderer can access only those selected inputs.
Text shown to participants stores named values that enter the standard translation workflow. Keys must be unique and non-empty.
Preview text in switches among available runtime locales.
Sample inputs lets you test Answered, Unanswered, and Skipped states for each declared input.

Participant-facing strings in the source are included in translation when they can be extracted. Use named text values for short labels or text that must be managed explicitly. The source code itself is not translated.

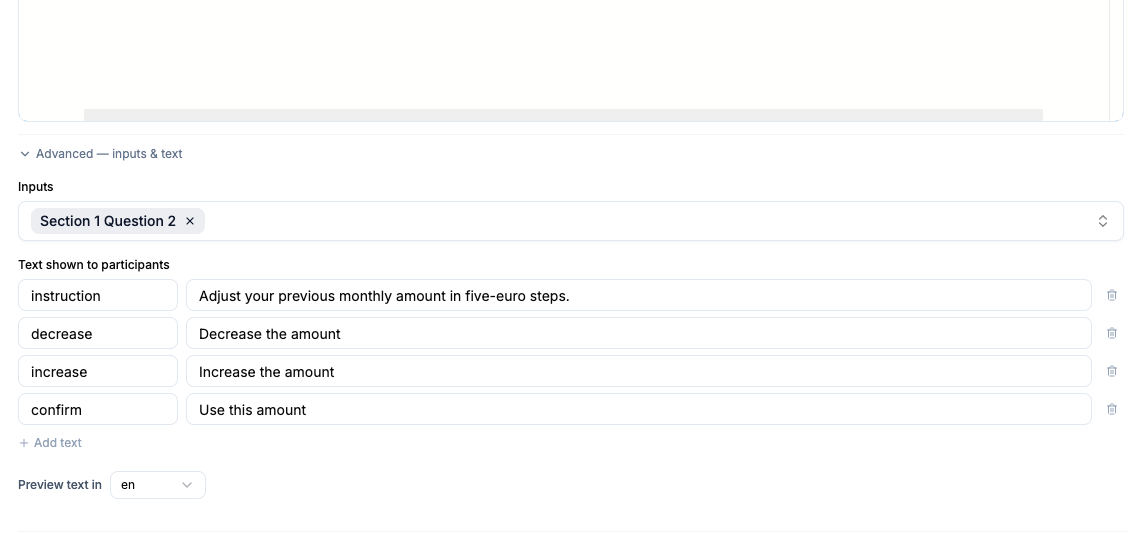

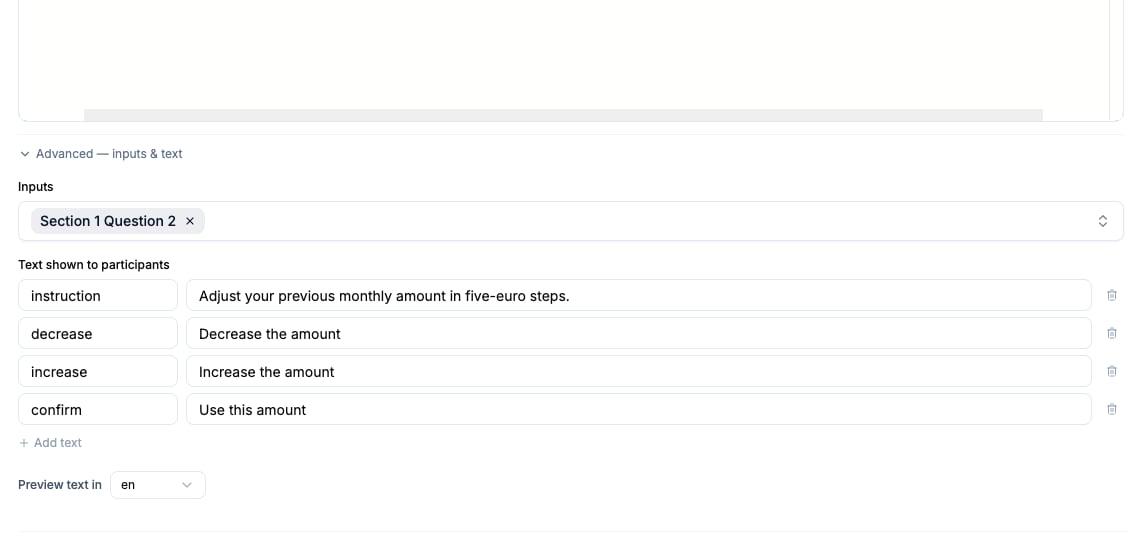

Custom renderer with one earlier question selected and four translatable text entries — Declare the earlier spend question and give each participant text a unique key.

Test and save the renderer

Before selecting Save renderer:

Complete the Preview with typical, boundary, and incomplete values.
Test each state of every earlier-answer input.
Switch the preview locale when the study is multilingual.
Confirm the answer status matches the underlying type.
Save the renderer, then save the questionnaire.
Open a test link and repeat the task on desktop and mobile widths.
Reload during the task and confirm the saved answer is restored correctly.

Compile errors and invalid text keys prevent the renderer from being saved. An invalid preview answer is a signal to correct the component before testing the study; the server will still reject a submitted value that does not match the question contract.

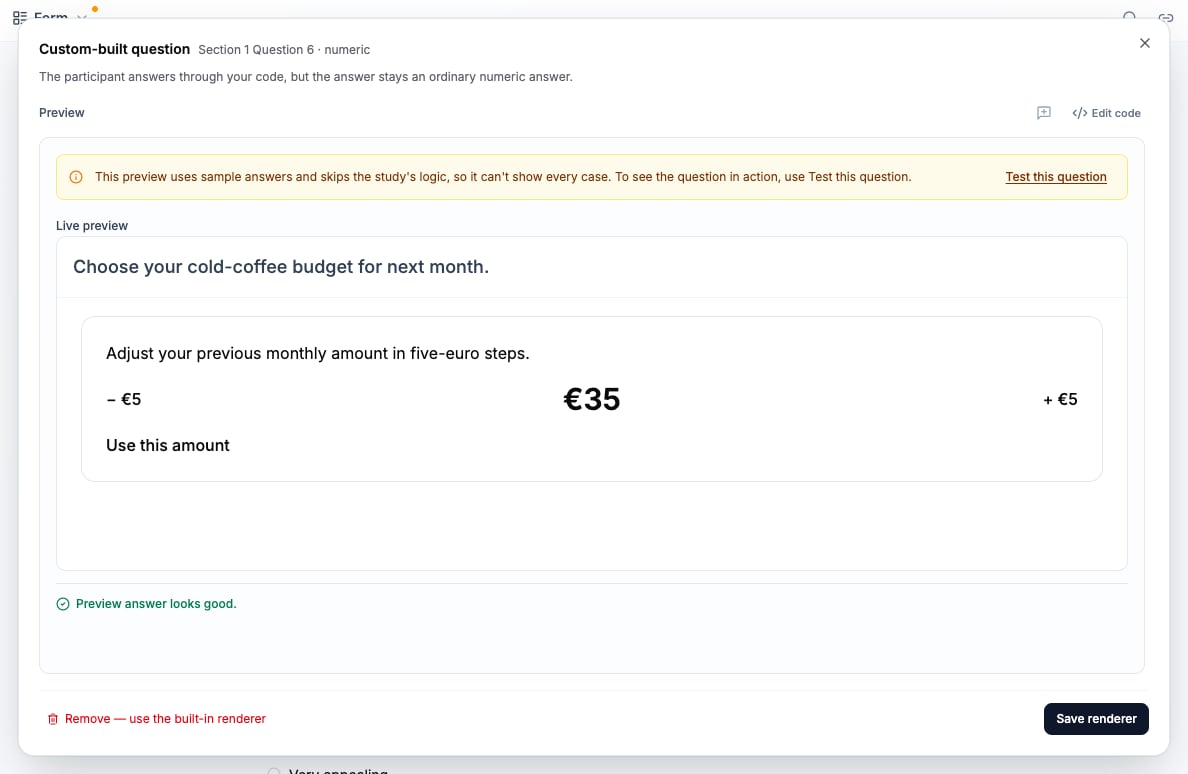

Custom budget preview at 35 euros with the green Preview answer looks good status — The preview accepts the 35-euro numeric answer and its currency.

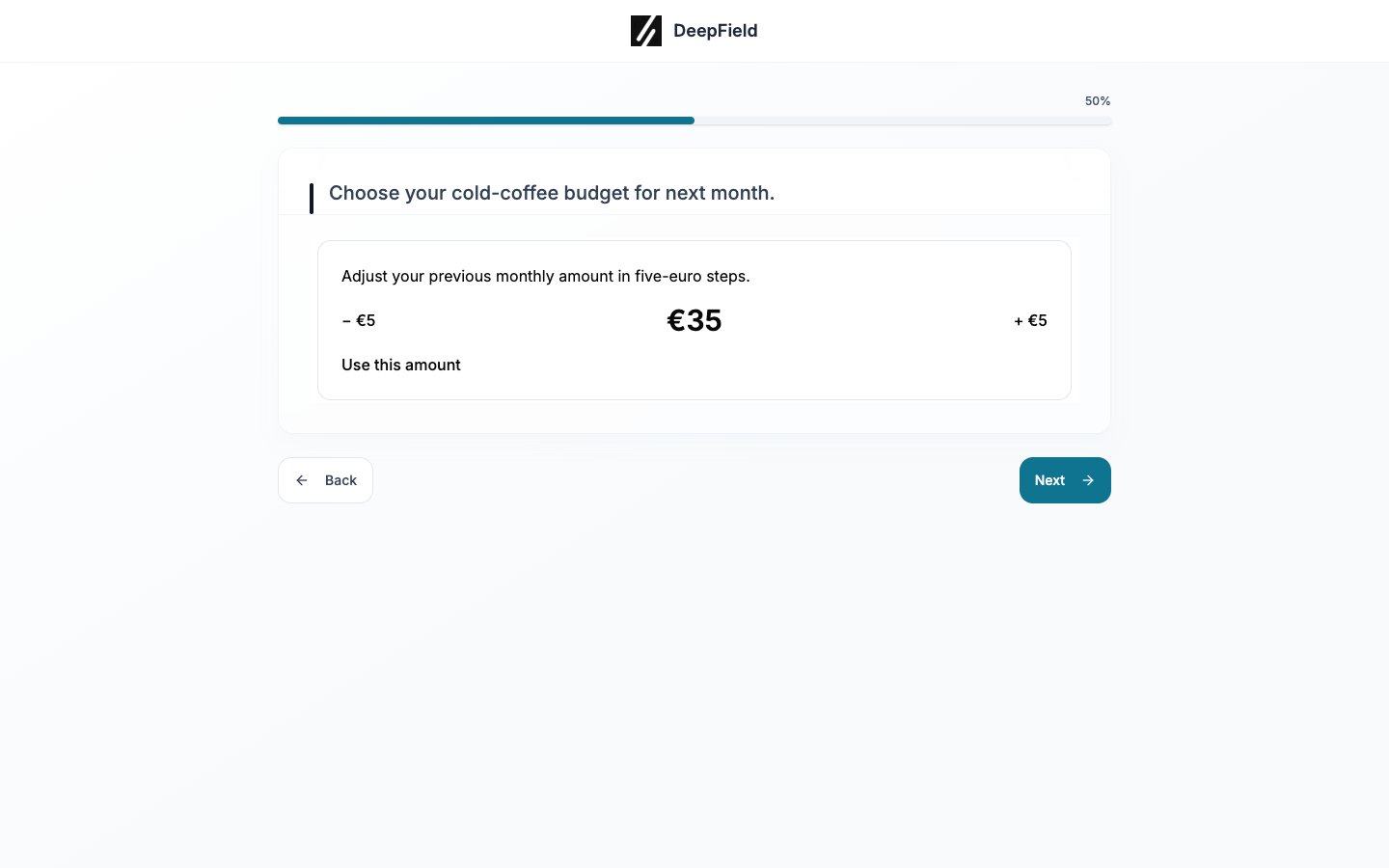

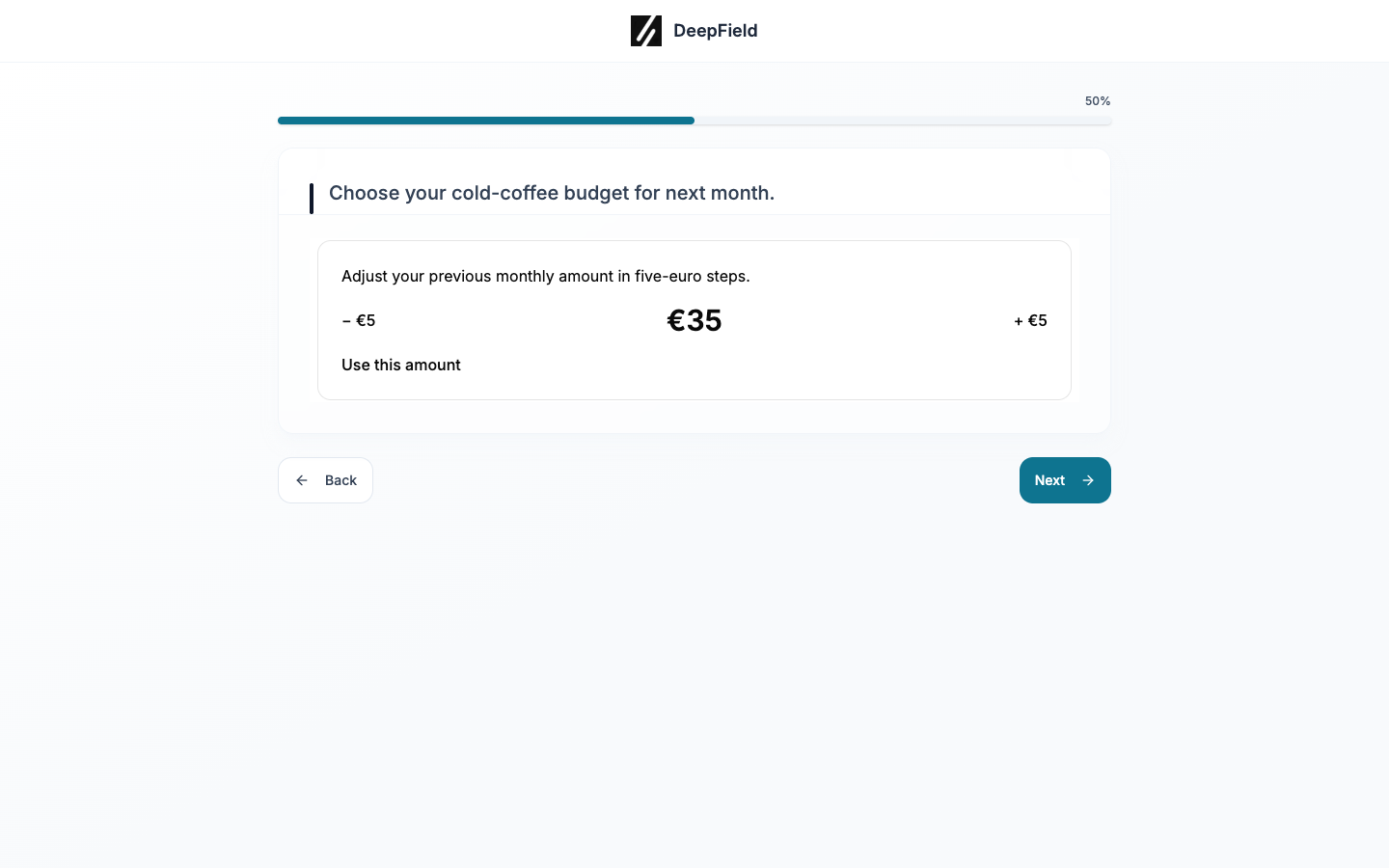

Participant budget control at 35 euros with Next enabled — The participant starts from the earlier 30-euro answer and can increase it to 35 euros.

Understand analysis and export behavior

Charts read the typed answer defined by the question type. Analysis shows a notice when a question uses custom code because the chart may not represent every detail of the interaction. The response Excel workbook and raw CSV export add a [raw] column for each custom-code question. It contains the exact stored value, including additional keys that do not appear in the type-specific columns.

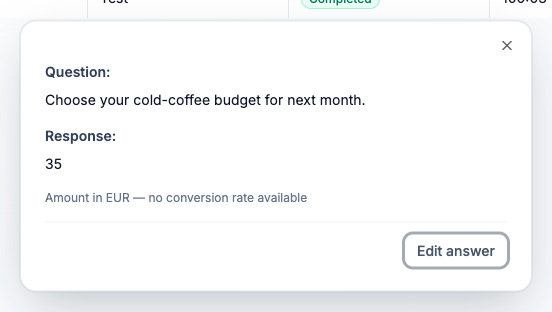

Saved numeric response 35 with an Edit answer control — Open the saved answer in Responses: this custom interface stored the number 35.

Return to the built-in interface

Open the renderer and select Remove — use the built-in renderer. Save the questionnaire. The question keeps its wording, type, options, and standard settings, but participants return to the built-in answer interface.

Troubleshoot a renderer

The code does not compile

Select Edit code and resolve the reported TypeScript or syntax error. Check component names and props in Coding guide, and remove any import other than react or @deepfield/question-kit.

The preview answer does not match the question

Compare the emitted value with the answer-contract table. Use option IDs and row IDs rather than display labels. Keep the original question type unless the intended analysis also requires a different data shape.

An earlier answer is missing

Add its question under Advanced — inputs & text and confirm it appears earlier in the participant journey. Handle Answered, Unanswered, and Skipped states in the component.

The participant cannot continue

Check the conditions passed to setValid, then test the same value in Preview. Confirm that the answer also passes any native Answer validation rule on the question.

The editor loads as plain text

The full code editor could not load. The fallback still permits text editing, but use Preview and a test link before publishing. Reload the builder if syntax assistance is required.
